Introduction:

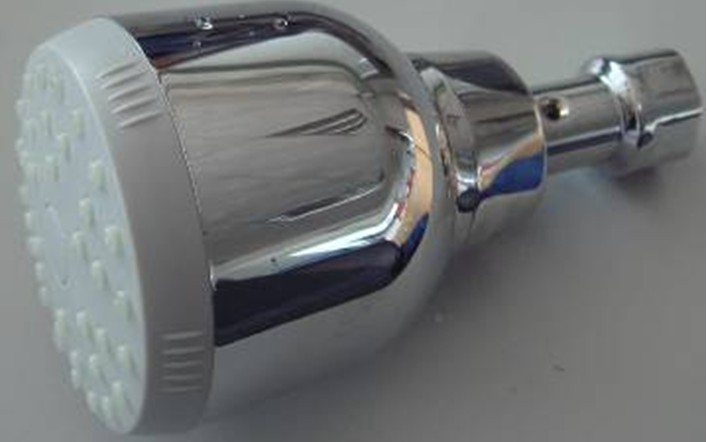

The aerated shower handset is suitable for most shower systems, it is designed to give a full

 flow shower experience aerating the water, this combination offers maximum enjoyment and maximum

 savings on both water and energy usage.

Operation:

The shower head functions by inhaling air into the handset from a venturi hole located at

bottom of the handset. We encourage you to test the effectiveness of the aerated technology

by placing your finger over the venturi hole when the unit is in full operation. Please note the

effect of some noise will be noticeable to produce this aeration effect.

Specifications:

Maximum temperature 85c

Minimum pressure 0.75 bar

Maximum pressure 12 bar

Connections female industry standard 1/2 BSPP

Normal flow rates 6.5 Liter per Minute at 2 bar pressure

Weight 130g

Length 22.5cm

Face (width) 6.8cm

Material: ABS plastic

Systems applications

Gravity-fed systems 1 bar and above

Mains pressure systems

Pumped systems

Electric showers at 1 bar and above

Features:

Saves up to 10 litres water a minute against conventional shower heads

Full flow aerating shower with consistent spray pressure

Scarifying effect reduces scale build-up

Reduce gas and electricity bills

Lowers carbon footprint

Excellent showering experience

UK designed

Easy to fit-no plumbing required

12 months guarantee

Pumped systems

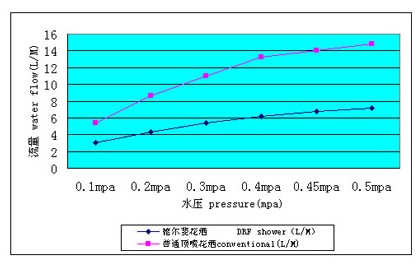

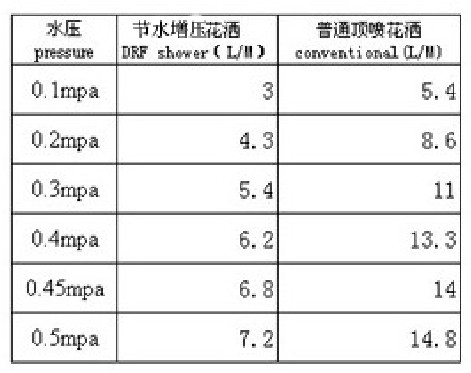

Your aerated handset will perform extremely efficiently when used under high water pressure,

it produces one of the lowest flow rates of any showerhead at a mere 8.50 litres a minute at

the highest pressure of 5 bar.

Water saving

Water efficiency not only saves money but help lower domestic carbon footprint, this helps

improve the environment and conserve the water we have. Heating water accounts for a lot of

energy used in homes, so the more water used, the more energy is needed, contributing to climate change.
